Brief Introduction of FKX50/980K Compressor

FKX50/980K compressor is used for large cooling capacity of bus ac unit. KingClima can provide original new gea bock fk50 series compressor with best price.

The OEM code of fkx50/980k compressor is 33277/980.



Technical of Compressor Bock FK50

FK50 Series Bock Compressors
Type		FK50/660	FK50/775	FK50/830	FK50/980
Nr. Of Cyl.		6
Swept Volume(cm3)		662	776	831	976
Displ. Volume(1450rpm)		57.6	67.6	72.3	84.9
Weight		42.0	41.0	43.0	42.0
Connections	Discharge Line DV mm/inch	35/1 3/8	35/ 13/8	35/13/8	35/13/8
	Suction Line SV mm/inch	2*35/1 3/8	2*35/1 3/8	2*35/1 3/8	2*35/1 3/8
Oil Charge Ltr.		2.6
Inertia moment of the driving unit(kgm2)		0.0047		0.0056
Max. permissible pressure (LP/HP)		19 / 28 bar
Permissible range of rotation speeds		500 - 3500 ¹/min

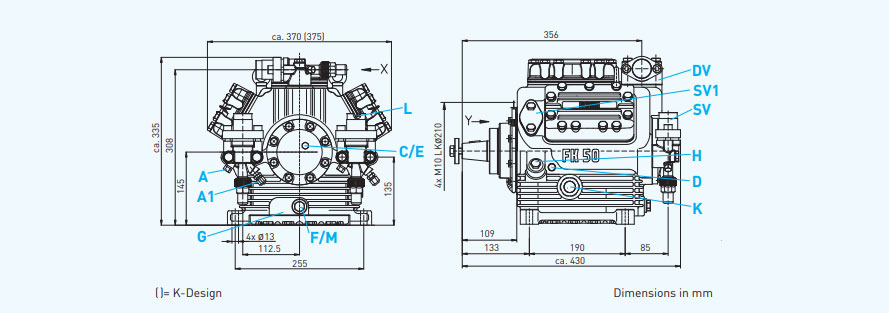

Dimensions Length / Width / Height		430* 375*335 mm
Lubrication		Oil pump
Oil charge		2,5 Ltr.
Oil type R22		FUCHS Reniso SP 46
Oil type R134a, R404a, R407c, R507		FUCHS Reniso Triton SE 55
