Remanufactured fkx40 Compressor
Model:
Remanufactured Bock FKX40 Series
Nr. Of Cyl.
4
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
.jpg)
Product Tags

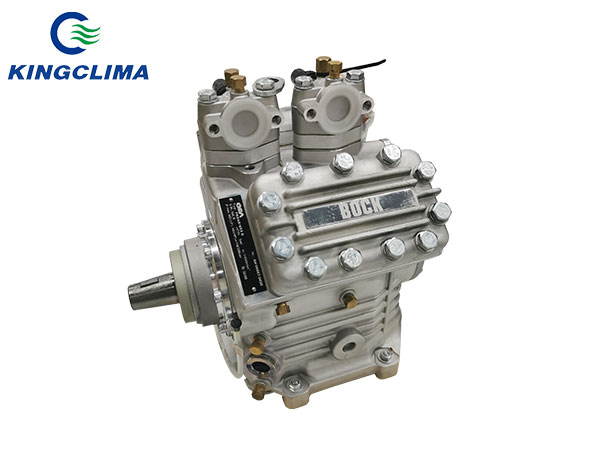

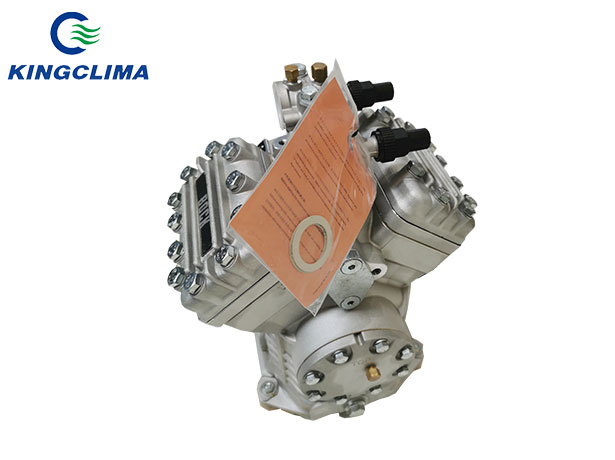

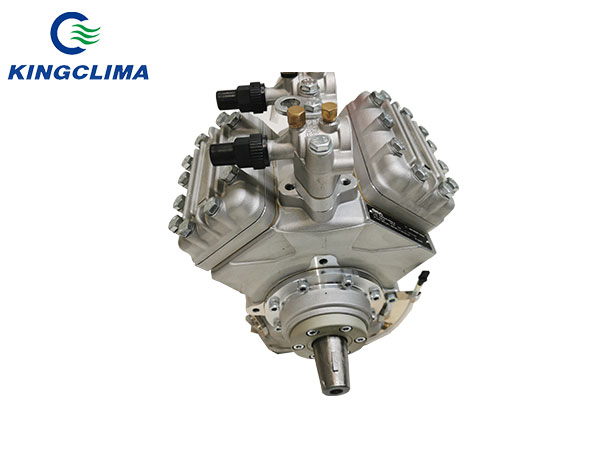

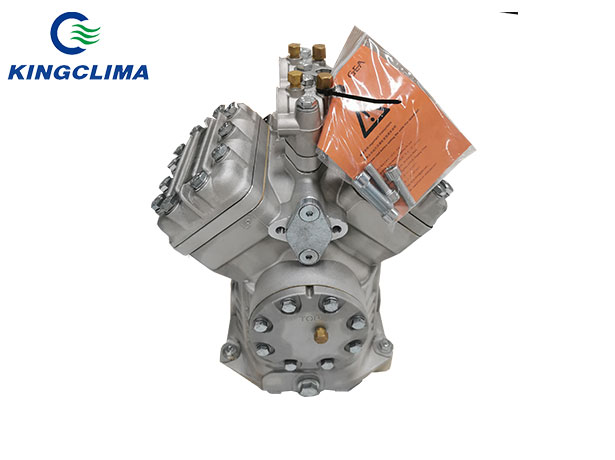

Brief Introduction of Remanufactured fkx40 Compressor
KingClima collect the used bock fkx40 compressors from market to our factory and then we will replace the old broken parts with China made high quality parts, to wash and polishing, change refrigerant and with other technology to make the bus ac compressor with a high performance.
We can provide all kinds of FKX40 series remanufactured bock fkx40 for sale with low price and 2 years warranty. Besides that, all of our remanufactured bus ac compressors have the tracking number, so customers can clearly see where the compressors come before.
It is popular in aftersales market service and can be accept by the local customers! After all the remanufactured bock fkx40 price is lower than original new!

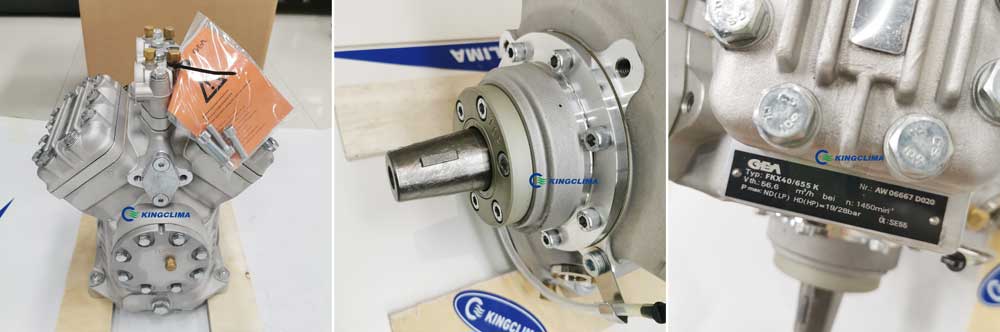

Photo: bock fkx40 655k remanufactured compressor details
Technical of Remanufactured Bock fkx40
| Type | FK40/390 | FK40/470 | FK40/560 | FK40/655 | |
| Nr. Of Cyl. | 4 | ||||
| Swept Volume(cm³) | 385 | 466 | 554 | 650 | |
| Displ. Volume(1450rpm) | 33.5 | 40.5 | 48.3 | 56.6 | |
| Weight | 34.0 | 33.0 | 33.0 | 31.0 | |
| Connections | Discharge Line DV mm/inch | 22/7/8 | 28/ 11/8 | 28/11/8 | 35/13/8 |
| Suction Line SV mm/inch | 28/ 11/8 | 35/ 13/8 | 35/ 13/8 | 35/ 13/8 | |
| Oil Charge Ltr. | 2.0 | ||||
| Inertia moment of the driving unit(kgm2) | 0.0043 | ||||
| Max. permissible pressure (LP/HP) | 19 / 28 bar | ||||
| Permissible range of rotation speeds | 500 - 3500 ¹/min | ||||
| Dimensions Length / Width / Height | 385* 325*370 mm | ||||
| Lubrication | Forced lubrication | ||||
| Oil charge | 2,0 Ltr. | ||||
| Oil Pump | Rotation-independent | ||||
| Oil type R22 | FUCHS Reniso SP 46 | ||||
| Oil type R134a, R404a, R407c, R507 | FUCHS Reniso Triton SE 55 | ||||
Differences Between Original Bock Compressors and Remanufactured Bock Compressors
1.The original bock compressor has an original BOCK label.The rebuild one has no such label.
2.The original bock compressor is equipped with GEA shut-off valves and has GEA serial number.Rebuild one is equipped with common shut off valves.
3. The original BOCK compressor surface treatment is smooth and delicate while rebuild one is rough.
4. The original BOCK compressor front cylinder head is smooth but there are obvious grinding traces on the rebuild ones.
5.There is a letter D at the sight glass for the original BOCK compressor but such letter is polished away on the rebuild one.
6. The mounting hole surface of the original BOCK compressor is smooth while traces of sandblasting and reprocessing can be found from the rebuild ones.
