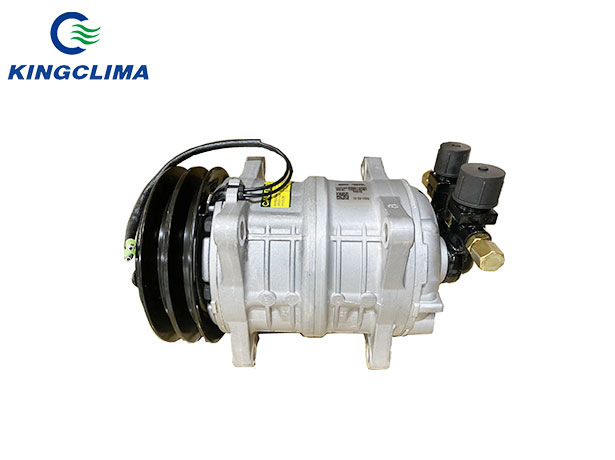

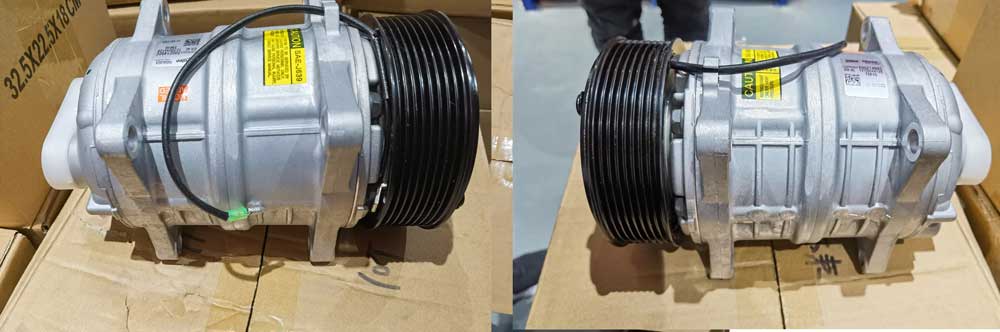

Valeo TM15 Compressor
Model:
Valeo TM15
Technology:
Heavy Duty Swash Plate
Displacement:
147 cm³ ⁄ rev
Number of cylinders:
6 (3 double-headed pistons)
Revolution range:
700 – 6000 rpm
Direction of rotation:
Clockwise & Counterclockwise
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
KingClima supply Valeo zexel tm-15 compressor original new type and China made model to suit for the OEM market and aftermarket service. Both two types with very competitive price in the market. The tm 15 ac compressor China made model is the replacement type.
Model:
TM 15, TM15, TM-15
TM 15 XD, TM15XD, TM15-XD
TM 15 HD, TM15HD, TM15-HD
Belt: 2A (2x13 mm)
Voltage: 12V/24V
Valeo Tm15 Compressor Clutch Equipped - Catalog Number:
10-7241, 107241, 107-241
Tm 15 Ac Compressor Catalog Number:
Thermo King
10-2572, 102572, 102-572
Carrier
18-10157-13, 181015713, 18-1015713
Model:
TM 15, TM15, TM-15
TM 15 XD, TM15XD, TM15-XD
TM 15 HD, TM15HD, TM15-HD
Belt: 2A (2x13 mm)
Voltage: 12V/24V
Valeo Tm15 Compressor Clutch Equipped - Catalog Number:
10-7241, 107241, 107-241
Tm 15 Ac Compressor Catalog Number:
Thermo King
10-2572, 102572, 102-572
Carrier
18-10157-13, 181015713, 18-1015713
Valeo Zexel Tm-15 Technical Data
| Model | TM15 |
| Technology | Heavy Duty Swash Plate |
| Displacement | 147 cm³ ⁄ rev |
| Number of cylinders | 6 (3 double-headed pistons) |
| Revolution range | 700 – 6000 rpm |
| Direction of rotation | Clockwise & Counterclockwise |
| Bore | 36.0 mm |
| Stroke | 24.0 mm |
| Lubrication syste, | Splash lubrication |
| Shaft seal | Lip seal type |
| Oil | ZXL 100PG PAG OIL (150 cm³) |
| Weight | 4.6 kg (w/o clutch) |
| Dimensions | 202 – 124 – 142 mm |
| (w/o clutch) | |
| Mounting | Ear or Direct |
