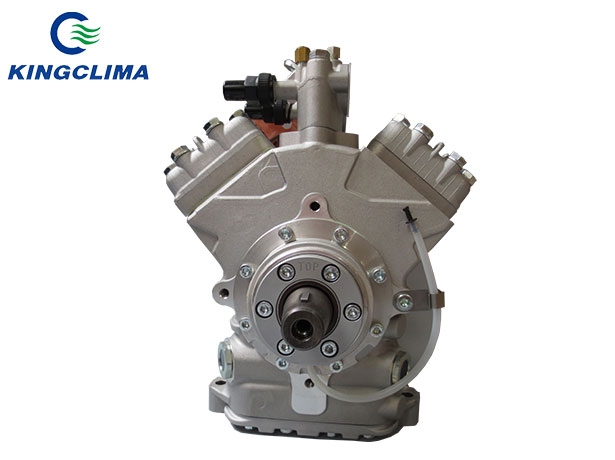

Bock FKX40/655 TK Compressor
Model:
Bock FKX40/655 TK Compressor
Compressor refrigeration capacity:
28.40 kW
Drive power:
11.60 kW
Torque:
77.00 Nm
Mass flow:
0.236 kg/s
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Brief Introduction of Bock FKX40/655 TK Compressor
The bock fkx40/655tk compressor is for thermo king refrigeration units. KingClima provide it with original new models for thermo king refrigeration parts replacement.
Besides the whole set of transport refrigeration compressor, we can also supply the China made or original new bock fkx40 tk compressors parts, such as : magnetic clutch, gasket, valve plate, filter suction ...
Technical of Bock FKX40/655 TK Compressor
| Number of cylinders / Bore / Stroke | 4 / 65 mm / 49 mm |
| Swept volume | 650 cm³ |
| Displacement (1450 ¹/min) | 56,60 m³/h |
| Mass moment of inertia | 0,0043 kgm² |
| Weight | 31 kg |
| Permissible range of rotation speeds | 500 - 2600 ¹/min |
| Max. permissible pressure (LP/HP) 1) | 19 / 28 bar |
| Connection suction line SV | 35 mm - 1 3/8 " |
| Connection discharge line DV | 35 mm - 1 3/8 " |
| Lubrication | Oil pump |
| Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A | FUCHS Reniso Triton SE 55 |
| Oil type R22 | FUCHS Reniso SP 46 |
| Oil charge | 2,0 Ltr. |

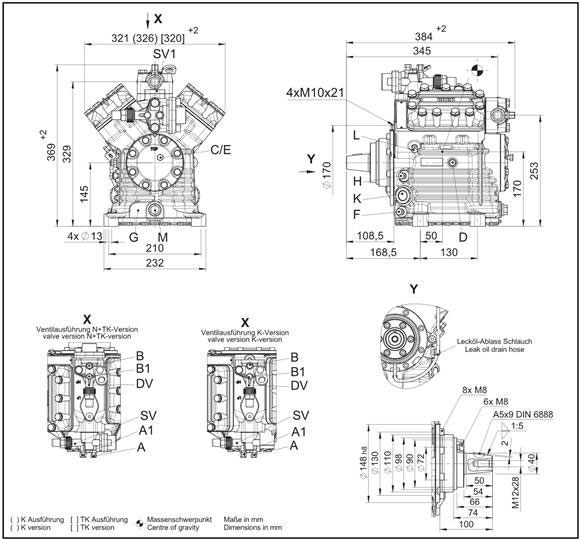

| Dimensions Length / Width / Height | 384 / 320 / 369 mm |
