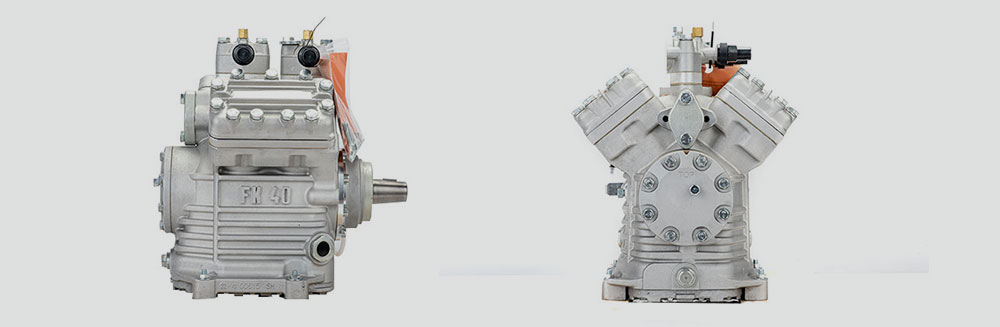

Bock FK40 470K

Brand Name: BOCK
Number of cylinders / Bore / Stroke: 4 / 55 mm / 49 mm
Swept volume: 466 cm³
Displacement (1450 ¹/min): 40,50 m³/h
Mass moment of inertia: 0,0043 kgm²
Weight: 33 kg
We're here to help: Easy ways to get the answers you need.
DESCRIPTION

Brief Introduction of Bock FK40 470K


Bock fk 40 470 is very popular model bus ac compressors for the OEM bus ac units. KingClima can provide the original new and remanufactured bock fk40 470 with best price!


Bock FK40 470 OEM Code


Compressor bock fk 40 470 is so popular with some OEM bus ac units brands such as Thermo King, autoclima, Sutrak, Konvekta, Webasto and Speros. Here are some oem code for reference:

Thermo King Autoclima Sutrak Konvekta Webasto Spheros
10-2962
102962
102-962
10-20962
1020962
102-0962
10-2869
102869
102-869
10-20869
1020869
102-0869
10-2798
102798
102-798
10-20798
1020798
102-0798
40430085
1102030B -
13988 –
21112410 -
21112430 –
1102030B
504303470 -
5801319859 -
5801371634 -
8862010000407 -
8862010004700
500615339
0038302460
0038307560
24010106070
24,01,01,060-45
24.01.01.060.45
24,01,01,060,45
24010106045
24010106007
24010106069
H13-003-501,
H13003501,
H13-003501,
H13.003.501


68801A
69047A
93971A
93971B


Video of Bock FK40 470K Compressor



Parameter:

Technical of Bock FK40 470K


Number of cylinders / Bore / Stroke 4 / 55 mm / 49 mm
Swept volume 466 cm³
Displacement (1450 ¹/min) 40,50 m³/h
Mass moment of inertia 0,0043 kgm²
Weight 33 kg
Permissible range of rotation speeds 500 - 2600 ¹/min
Max. permissible pressure (LP/HP) 1) 19 / 28 bar
Connection suction line SV 35 mm - 1 3/8 "
Connection discharge line DV 28 mm - 1 1/8 "
Lubrication Oil pump
Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A FUCHS Reniso Triton SE 55
Oil type R22 FUCHS Reniso SP 46
Oil charge 2,0 Ltr.

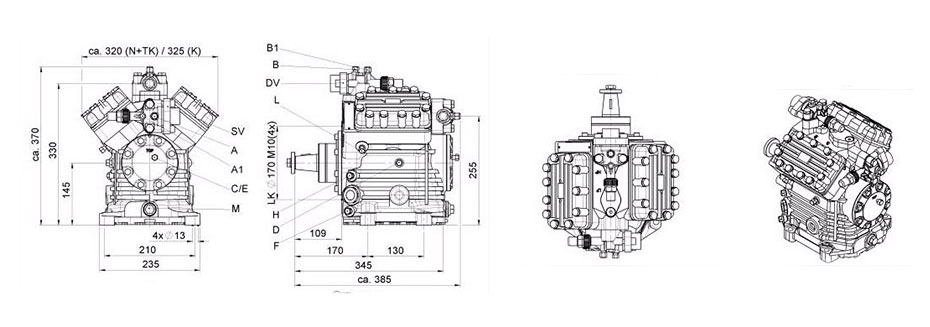

Dimensions Length / Width / Height   384 / 320 / 369 mm
