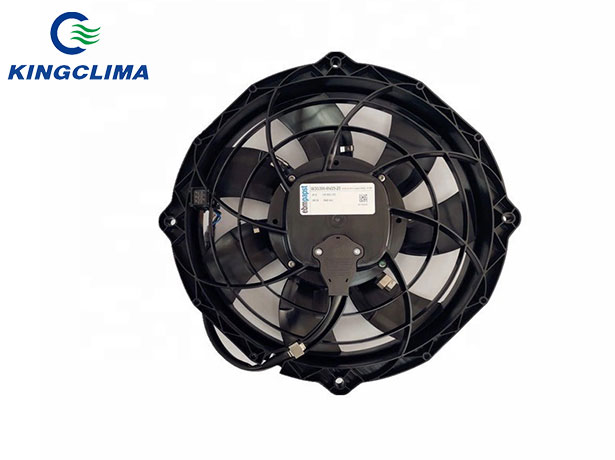

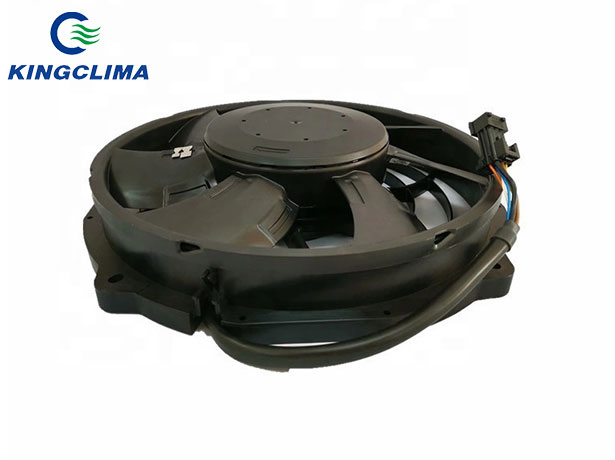

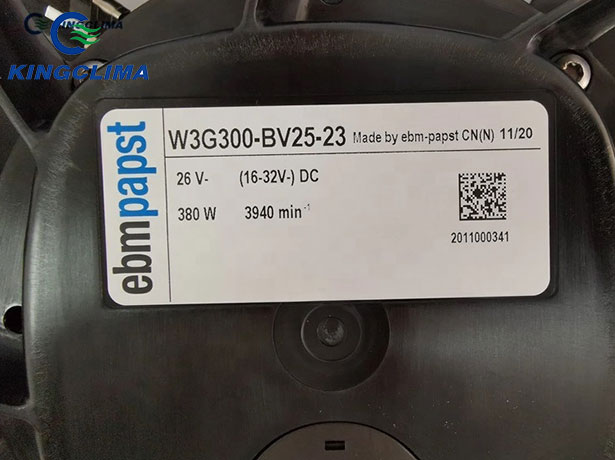

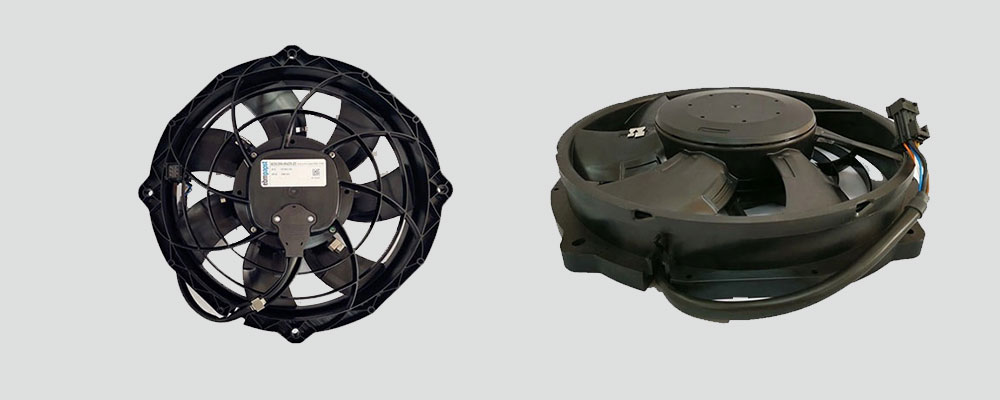

Original EBM Fans W3G300-BV25-23
Brand Name:
EBM
OE NO.:
W3G300-BV25-23
Voltage:
26V
Power:
380W
Application:
bus & Coach
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Brief Introduction of Original EBM Fans W3G300-BV25-23
Provide original new EBM w3g300-bv25-23 bus ac condenser fans with best price!
Technical of EBM w3g300-bv25-23 Condenser Fan
| Mass | 2 kg |
| Size | 300 mm |
| Material of impeller | PA plastic |
| Material of wall ring | PA plastic |
| Number of blades | 7 |
| Direction of air flow | V" |
| Direction of rotation | Clockwise, seen on rotor |
| Type of protection | IP 24 KM; (Motor); electronics IP 66 / 69 K |
| Insulation class | "B" |
| Humidity class | F4-1 |
| Max. permissible ambient motor temp. (transp./ storage) |
+110 °C |
| Min. permissible ambient motor temp. (transp./storage) |
-40 °C |
| Mounting position | Any |
| Condensate discharge holes | None, open rotor |
| Operation mode | S1 |
| Motor bearing | Ball bearing |
| Technical features | - Direction of rotation selection counter-clockwise / clockwise |
| - Fault output (high-side switch max. 30 mA) | |
| - Output limit | |
| - Motor current limit | |
| - Soft start | |
| EMC directives | ECE R10 Rev.3 |
| Electrical leads | With plug |
| Motor protection | Reverse polarity and locked-rotor protection |
| Cable exit | Lateral |
