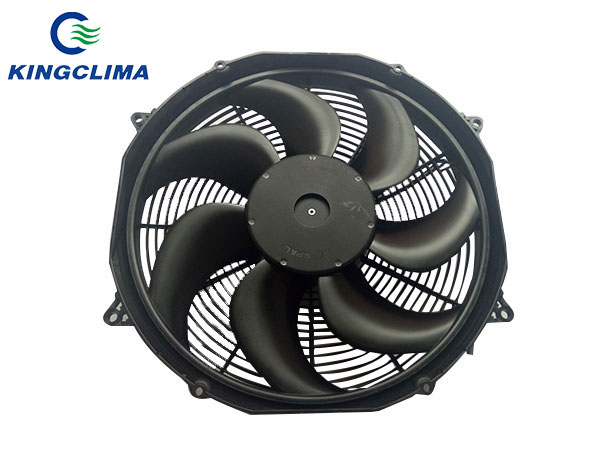

SPAL Condenser Fan VA33-BP93-VLL-65A 24V
Brand Name:
SPAL Fan
Type:
Axial fans (brushed)
Airflow m3/H:
3188
Airflow cfm:
1881
Max. current consumption:
22, 5A
Voltage:
12V
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Brief Introduction of va33-bp93-vll-65a 24v
va33-bp93-vll-65a 24v is used for bus ac unit, and its oem code is va33-bp93-vll-65a 24v. kingClima provide the va33-bp93-vll-65a 24v spal fan with the best price to customers!
.jpg)

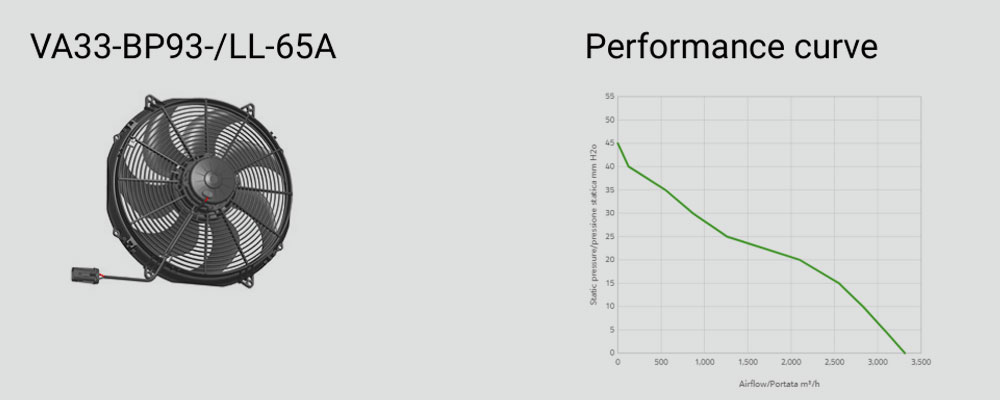

Technical of va33-bp93-vll-65a 24v
| Static pressure | Airflow | Current input | Airflow | Static pressure |
| mm H20 | m³/h | A | CFM | in H20 |
| 0 | 3313 | 11.1 | 1955 | 0 |
| 5 | 3074 | 11.6 | 1814 | 0.2 |
| 10 | 2828 | 12 | 1669 | 0.4 |
| 15 | 2551 | 12.4 | 1505 | 0.6 |
| 20 | 2099 | 12.4 | 1238 | 0.8 |
| 25 | 1260 | 11.9 | 743 | 1 |
| 30 | 866 | 12 | 511 | 1.2 |
| 35 | 549 | 12.1 | 324 | 1.4 |
| 40 | 125 | 12.7 | 74 | 1.6 |
| 45 | 0 | 13.1 | 0 | 1.8 |
