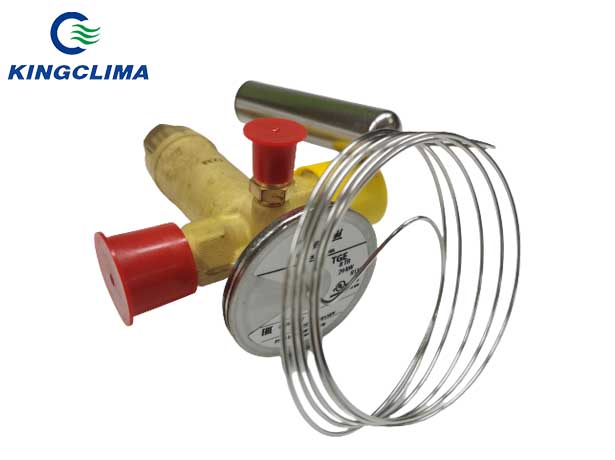

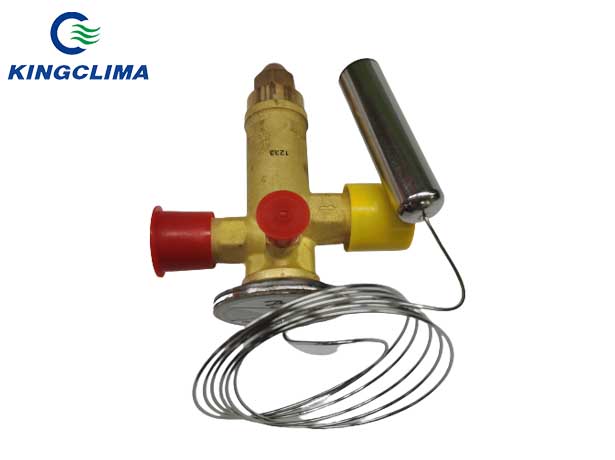

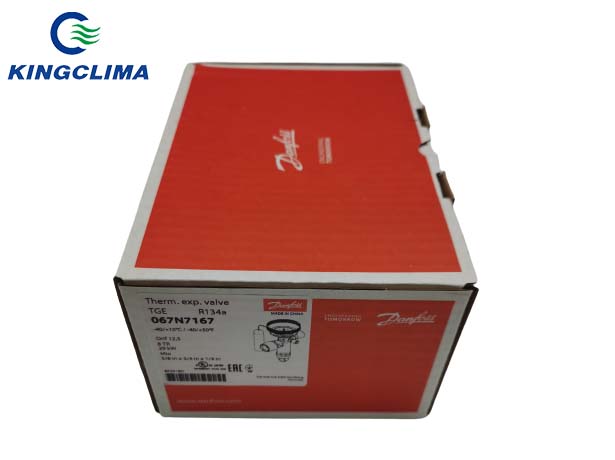

Danfoss 067N7167 Thermostatic Expansion Valves

KingClima Supply Danfoss 067N7167 Thermostatic Expansion Valves and other more bus ac parts , such as Compressor, Magnetic Clutch, Evaporator Blower, Condenser Fan, Expansion Valve, Fittings, Control Panel, Water pump, Pressure Switch, Air purifiers, Alternator and so on.

Brief description of Danfoss 067N7167 Thermostatic Expansion Valves :



Approval	C UL US LISTED EAC LLC CDC TYSK
Balanced port [Yes/No]	Yes
Body material	Brass
Bulb temperature max. [ºC]	100 °C
Bulb temperature max. [ºF]	210 °F
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
Connection material	Brass
Direction	Straightway
Element temperature max. [°C]	110 °C
Element temperature max. [°F]	230 °F
Equalization connection type	MIO
Equalization size [in]	1/4 IN
Flow direction	Bi-flow
Flow direction indicator	Embossed 1-way arrow
Inlet connection type	MIO
Inlet size [in]	5/8 IN
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Orifice capacities [kW]	29 kW
Orifice capacities [TR]	8 tons
Orifice size	12,5
Outlet connection type	MIO
Outlet size [in]	3/4 IN



Packing format	Multi pack
Parts included	Bulb strap
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product description	Thermostatic Expans. Valve
Product family name	TGE
Product group	Expansion valves
Product name	Thermostatic expansion valve
Quantity per packing format	8 pc
Rated cap. cond. Range N [IMP]	tcond=100 °F tevap=40 °F tliq=98 °F
Rated cap. cond. Range N [SI]	tcond=38 °C tevap=4.4 °C tliq=37 °C
Refrigerants	R134a R513A
Serviceable	No
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [Max]	10 °C
Temperature range [°C] [Min]	-40 °C
Temperature range [°F] [Max]	50 °F
Temperature range [°F] [Min]	-40 °F
Type	TGE
UL approved refrigerants	R134a R513A
Valve body temp. max. [°C]	100 °C
Valve body temp. max. [°F]	210 °F
