LA1602Y 2B 200mm Clutch for Bock Bitzer AC Compressor
Model:
LA1602Y
Rated Voltage :
24V
Max speed：
3800 rpm
Consumed Power:
60W
Groove type:
2B
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags

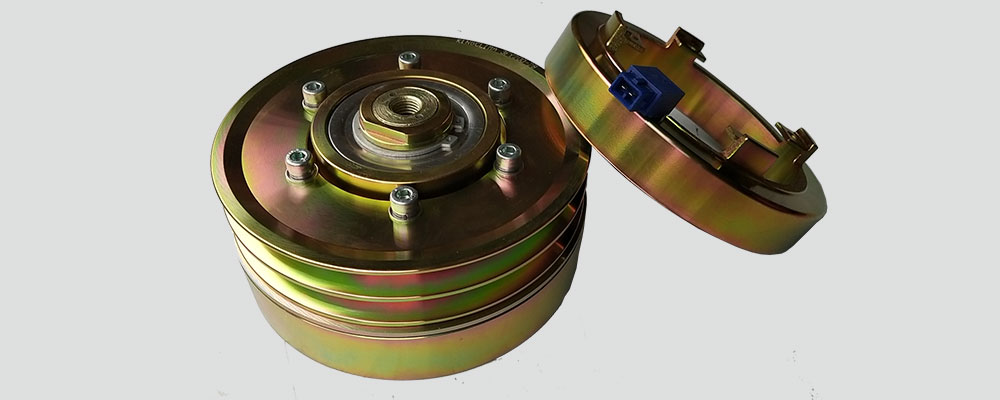

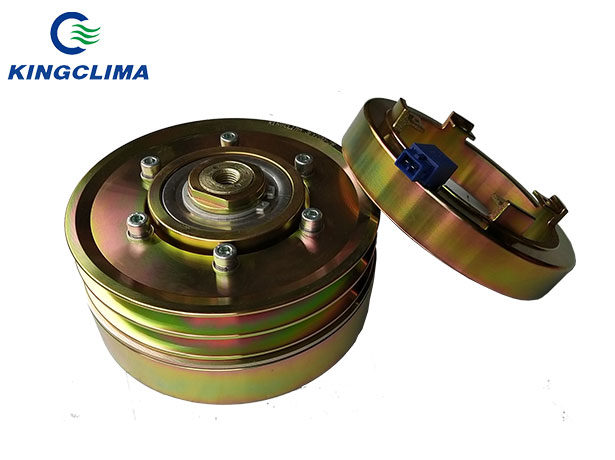

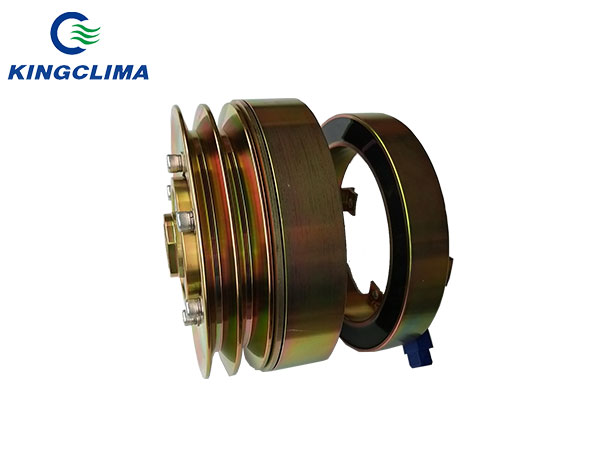

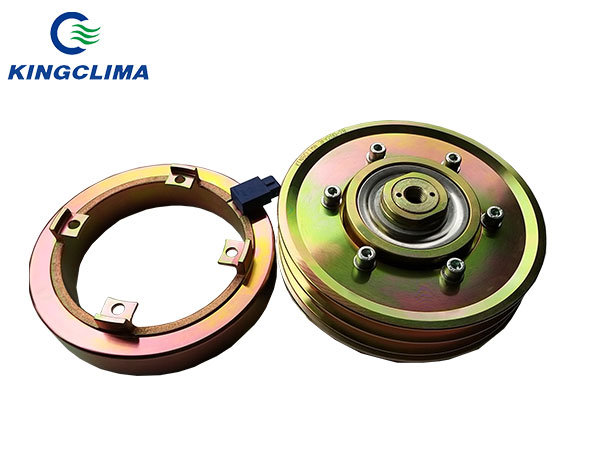

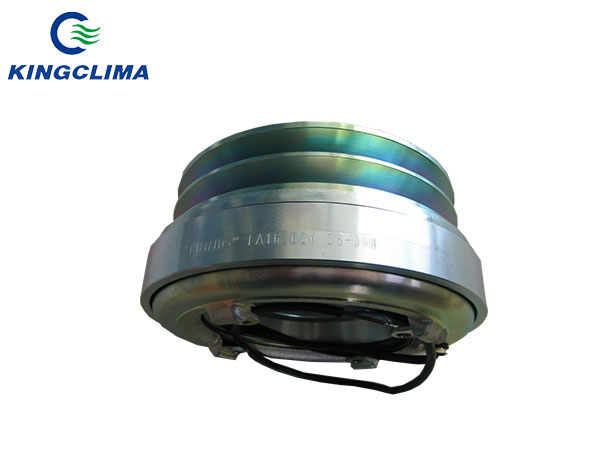

Brief Introduction of la1602y clutch
La1602y is magnetic clutch for bus ac compressor with Coil, 24V, LA16.02Y, 2B for Bock and Bitzer ac compressor.
OEM Code of la1602y linning clutch
00150156 -
030216900 - 13330B
- 300401029 -
30040402900 -
42536570 -
5006217562 - 50931
- 81066306066 -
Autoclima OEM code: 404561602
Application: LA16.02 2G "B" 193
Eberspächer - Sütrak (Carrier)
30,04,01,029
30 04 01 029
300401029
30,04,04,029-00
30 04 04 029-00
300404029-00
30040402900
88-67-01-00013-00
88670100013-00
8867010001300
00150156
Konvekta
H13-001-575-L
H13001575L
H13-001-575-L-01
H13001575L01
H13001575L01
Webasto-Spheros
13330B
Man
(Neoplan-Neoman)
8106630-6066
81.06630-6066
81066306066
IVECO
5006217562
Linnig
LA16.2Y
LA162Y
(Kendrion Markdorf)
LA16.02Y
LA1602Y

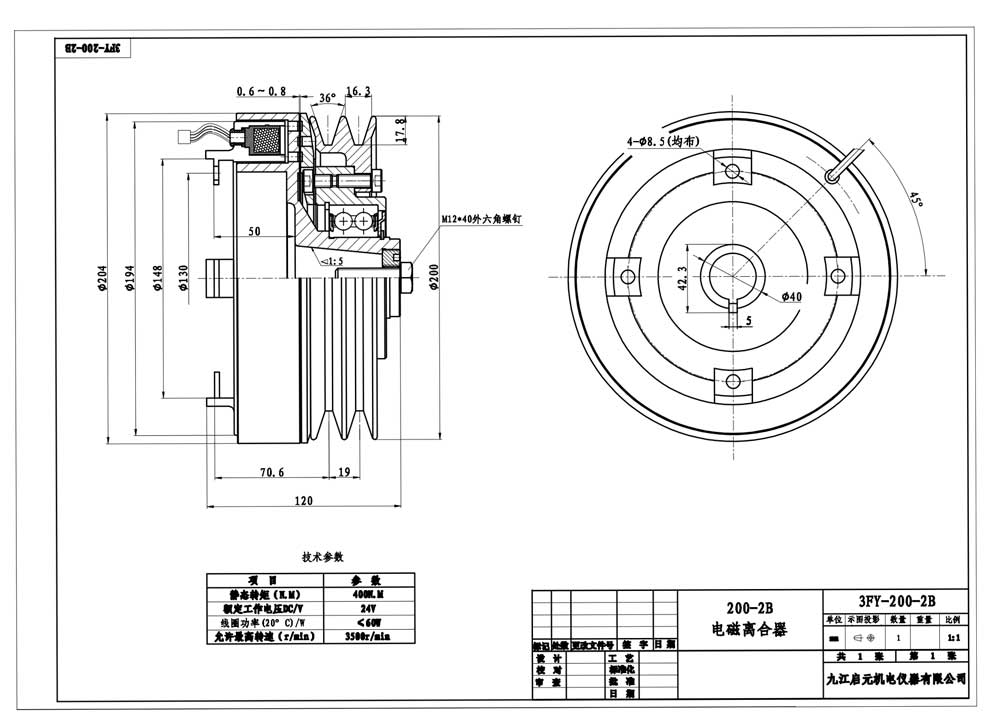

Technical of la1602y linning clutch
| Model | LA1602Y |
| Brand | Linnig |
| Static Friction Torque | 240Nm |
| Strap Wheel Slot/Groove Model | 2B |
| Rated Voltage | 24V |
| Consumption Power | 60W |
| Max Speed | 3800 rpm |
