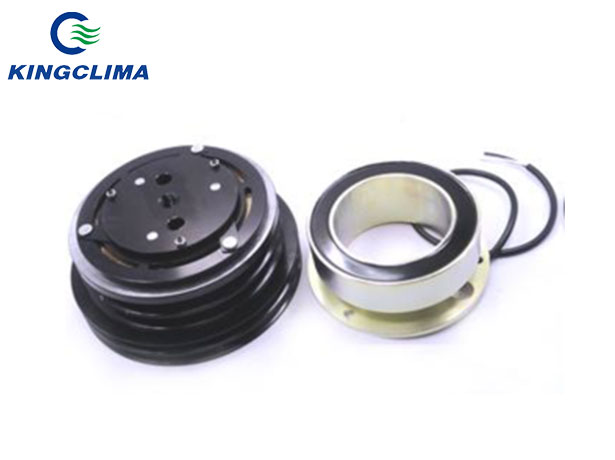

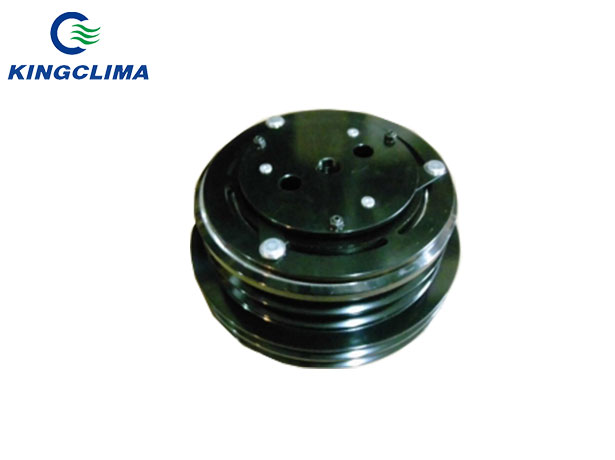

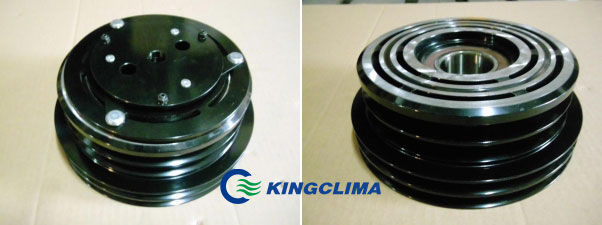

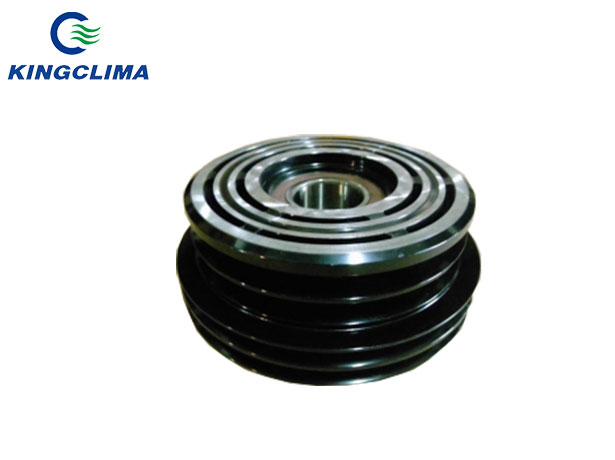

Brief Introduction of Thermo king 77-1663 clutch

KingClima provide origina new TK clutch replacement with affordable price for Thermo King and carrier transicold bus ac and refrigeration units after sales service market.

OEM Code:

Autoclima
40455105

Thermo king :
77-1663, 771663, 771-663

77-2521, 772521, 772-521

45-0271, 450271, 450-271, 45-271, 45271

70-0105, 700105, 70-0105. 70-105, 70105

77-1229, 771229, 771-229

107-150, 107150, 10-7150

Clutch plate (Hub )
TK 77-2543, TK 772543
77-2790, 772790

Clutch coil (24v)
45-1227, 451227, 451-227
45-1389, 451389, 451-389
45-1849, 45-1849, 451-849

42550426

HTAC
HTAC 1301, HTAC1301, HTAC-1301

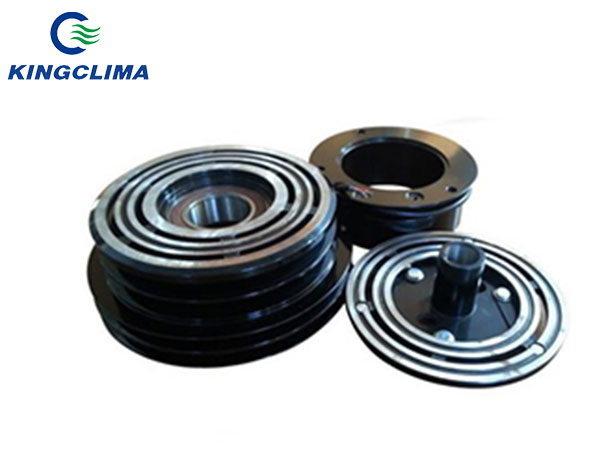

Clutch assembly (clutch plate ,coil 24V ,clutch pulley )  thermo king compressor bus air conditioner for TK X426,TK X430


Technical of TK 77-1663 clutch



Coil	24V
Rated power	62W
Compressors Apply	X 426, X426, X-426 X 430, X430, X-430
static friction torque	140N.M
