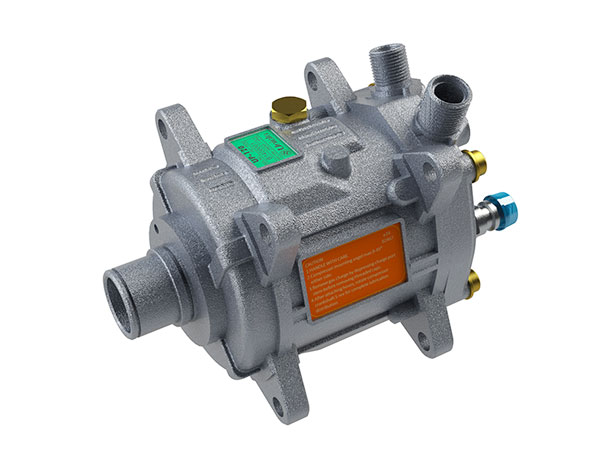

UPF120

UPF120

Model Number: Unicla UPF120
Type: Unicla 10-cylinder swashplate
Cooling capacity: 3-5KW
Displacement: 119cc/rev
Maximum continuous: 6000 rpm
Refrigerant: R404A
We're here to help: Easy ways to get the answers you need.
Description
• Smooth and quiet operation with excellent performance through all rev ranges
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
• Genuine NSK bearings throughout
Parameters
Model number Unicla UPF120
Type: Unicla 10-cylinder swashplate
Cooling capacity 3-5KW
Displacement 119cc/rev
Maximum continuous 6000 rpm
Refrigerant R404A
Oil POE32 (150 ml)
Mounting TM/QP13 & SD7H13 compatible

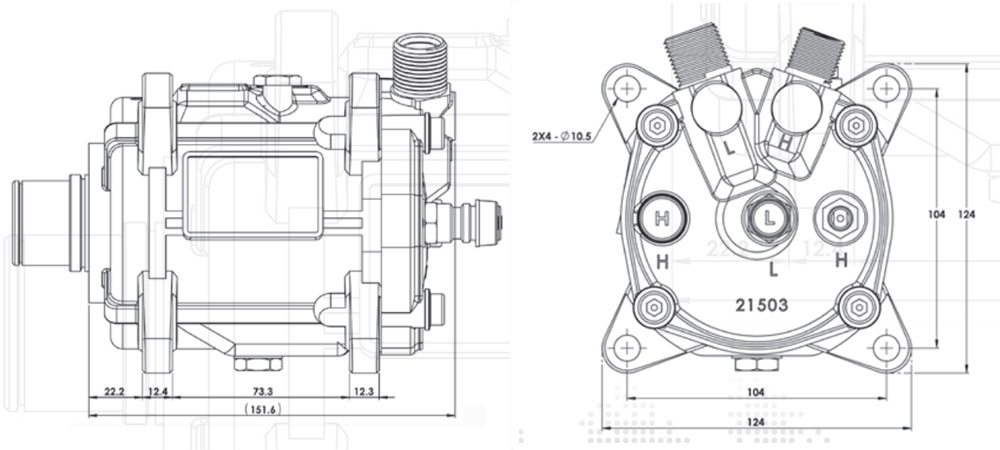

Drawing


The UP and UPF models are compatible with mounting brackets designed for compressors with 73 mm lug spacings and can be interchanged with many compressors used in various applications.
