UXF120
Model Number:

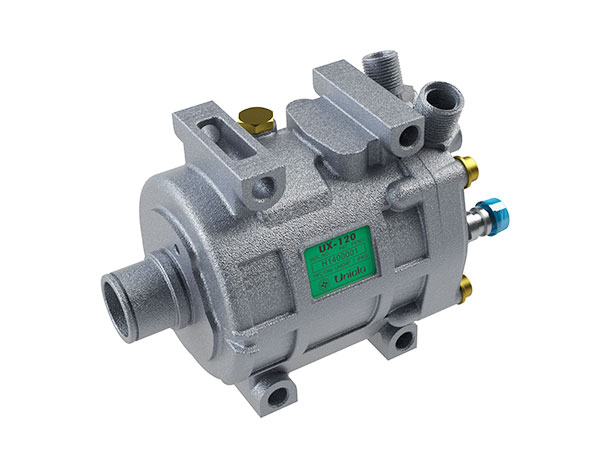

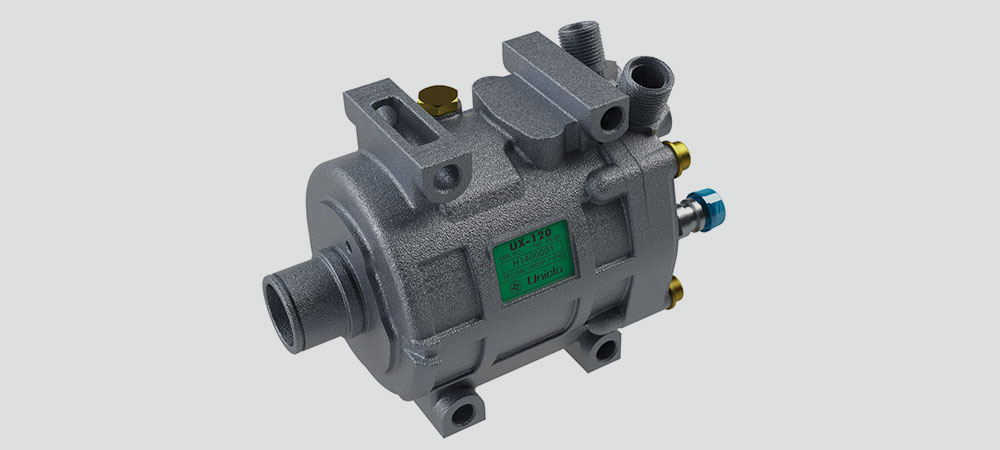

Unicla UXF120
Type:
Unicla 10-cylinder swashplate
Cooling capacity:
3-5KW
Displacement:
119cc/rev
Maximum continuous:
6000 rpm
Refrigerant:
R404A
We're here to help: Easy ways to get the answers you need.
• Smooth and quiet operation with excellent performance through all rev ranges
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
• Clockwise and counterclockwise rotation with no change in volumetric efficiency
• Heavy duty impressed steel gasket and HNBR Japanese high-temperature O-ring (two-point seal)
• Forged steel cylinder housing
• Drop-forged 5050 aluminium pistons with synthetic PTFE heat-treated rings
• Lip seal with high tolerance to heat and operational fatigue
| Model number | Unicla UXF120 |
| Type: | Unicla 10-cylinder swashplate |
| Cooling capacity | 3-5KW |
| Displacement | 119cc/rev |
| Maximum continuous | 6000 rpm |
| Refrigerant | R404A |
| Oil | POE32 (160 ml) |
| Mounting | TM/QP16/15 & SD7H15 compatible |

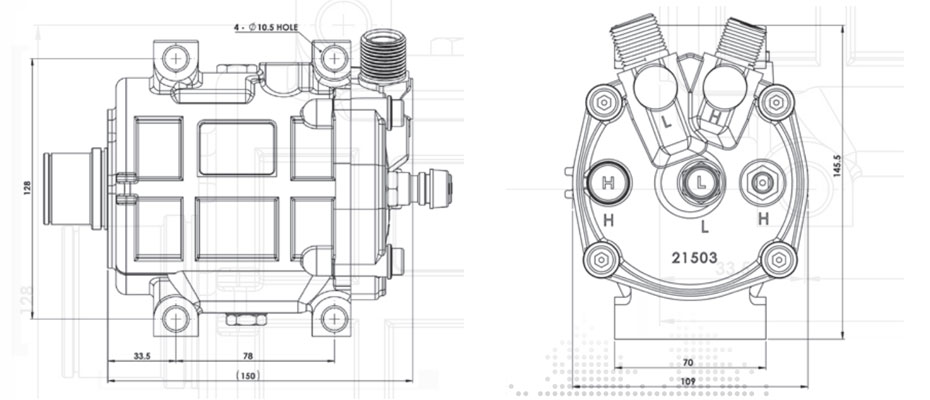

The UX and UXF models are direct mount (bolt-through) and have side mounting points 78 mm apart.
